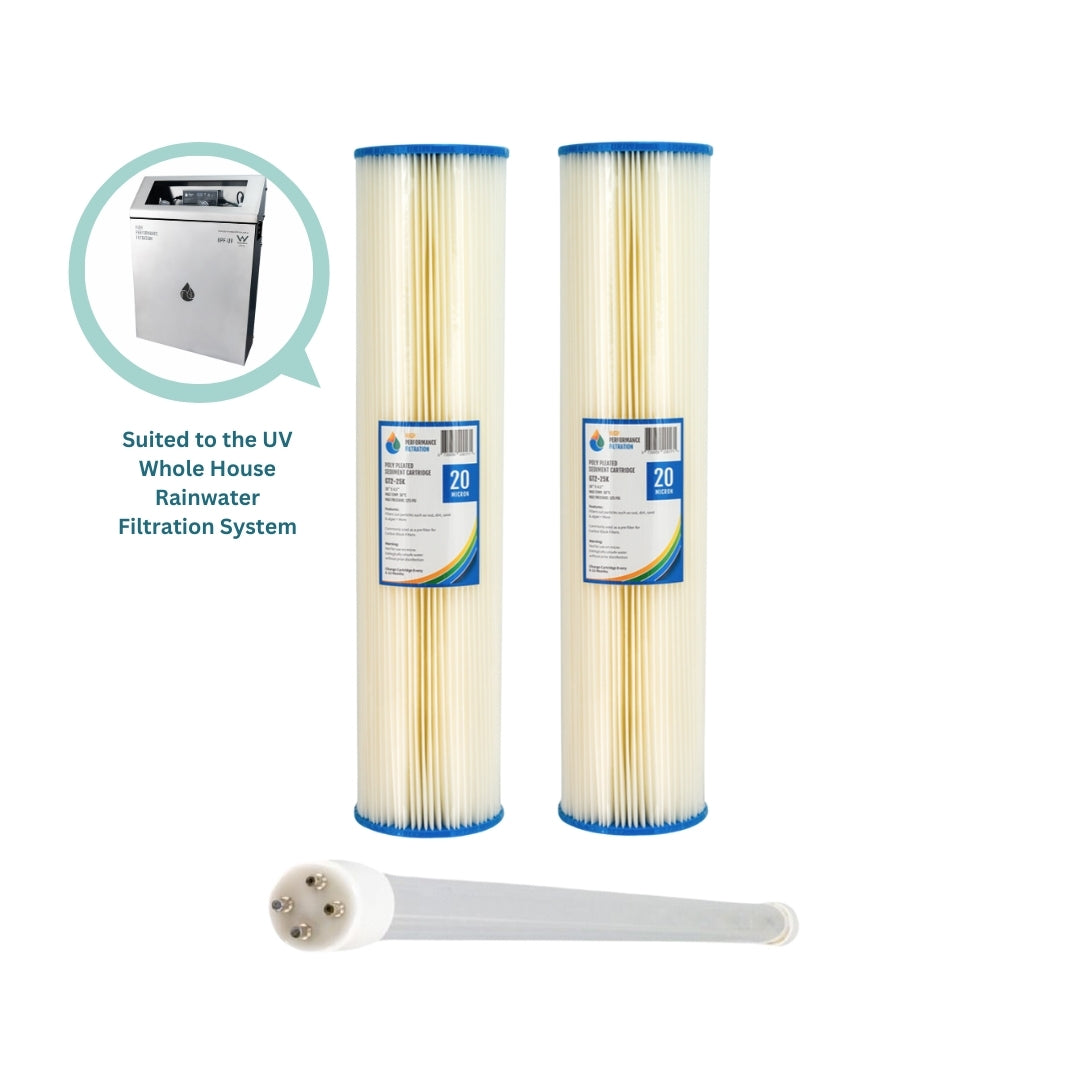

Filters Included with this replacement pack:

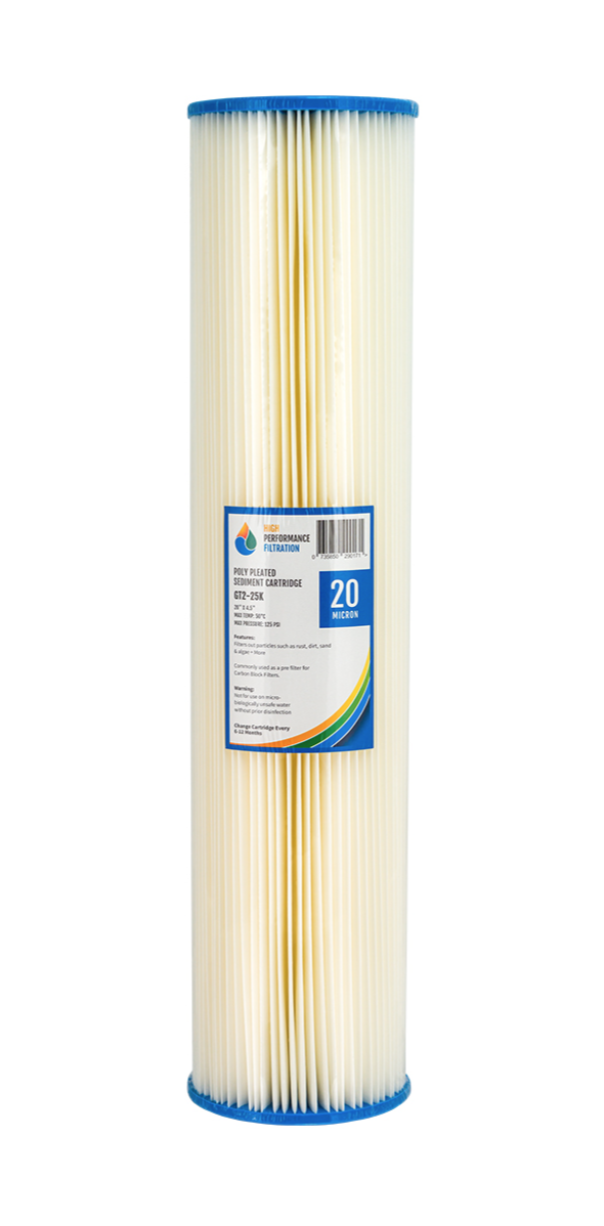

2 X 20 Micron Washable Pleated Sediment Filters 20" X 4.5"
Keep your water flowing clean with our 20-inch x 4.5 inch 20 Micron Pleated Washable Sediment Filter - designed for use with our Stainless Steel UV Whole House Rainwater Filtration System. Engineered for optimal performance, this filter is built to capture sediment, dirt, leaves, and debris commonly found in rainwater or tank water systems.
Key Features:
High-Capacity Filtration: The pleated design provides a larger surface area, increasing filtration efficiency and capturing more debris without clogging.
Washable & Reusable: Save time and money by simply removing, cleaning, and reusing the filter when it gets dirty.
Tank Water Specialist: Ideal for rainwater systems that see increased debris after fresh rain, ensuring clean, sediment-free water.
Durable Construction: Designed for repeated use, making it a cost-effective and environmentally friendly choice.
Usage Notes:
For drinking water systems, avoid overusing pleated filters to prevent bacterial buildup and odours.
This sediment filter is your first line of defence for cleaner, safer rainwater—designed to help your entire house filtration system perform at its best.

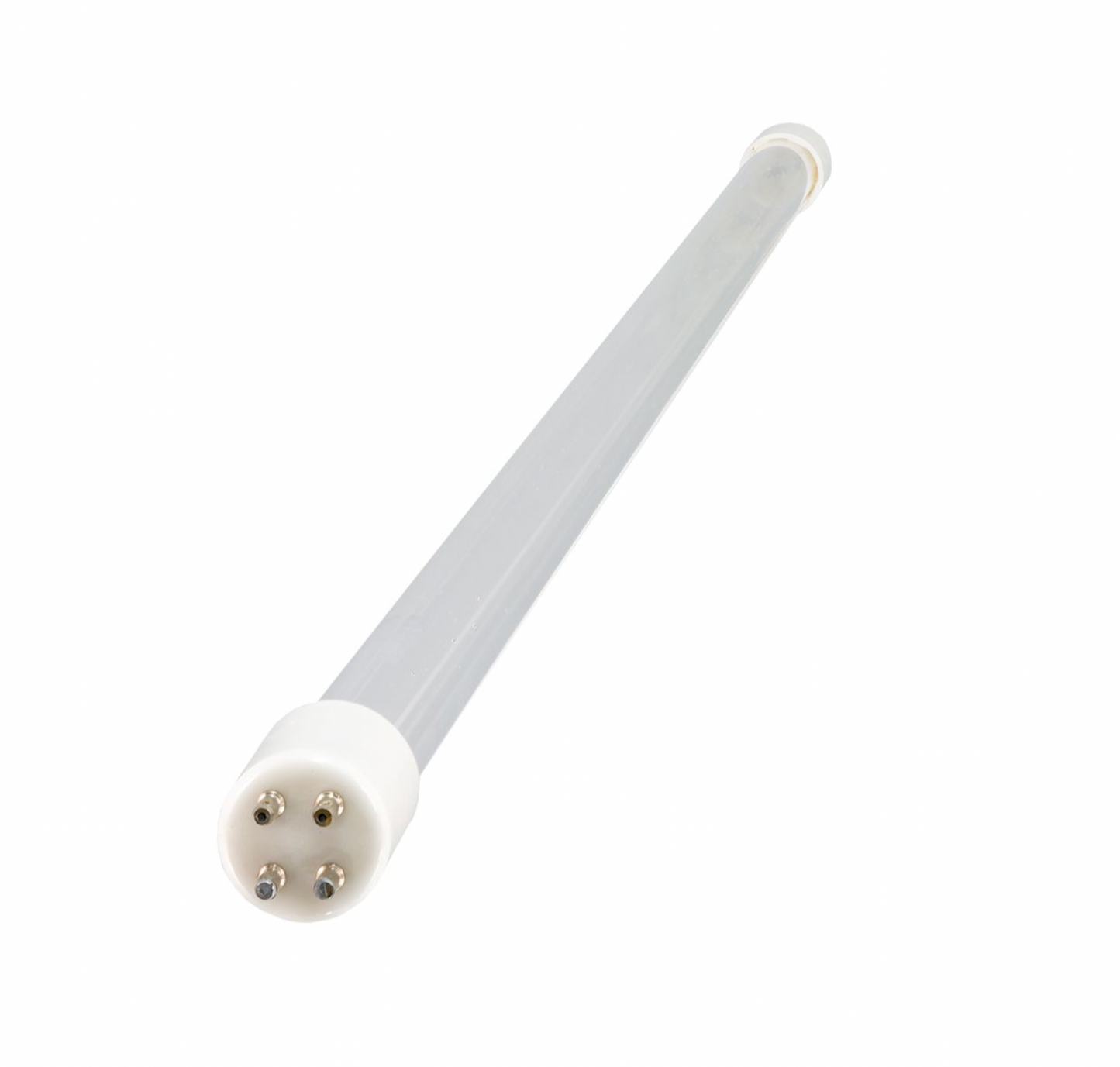

48 Watt High Output UV Lamp 4 Pin
High-output lamps offer system designers a unique opportunity to optimize system functionality while minimizing the required lamps. By utilizing these lamps, system designers can benefit from reduced system footprint, increased efficiency, and enhanced system capacity.
Here are some maintenance notes regarding UV systems:
Ultraviolet systems are rated based on the dosage level of UV-C radiation delivered into the water (measured in mJ/cm²). The standard level of disinfection is typically 30mJ/cm², and to comply with Australian Drinking Water Guidelines, a minimum dose of 40mJ/cm² is required. It's important to note that our lamps have a rated lifespan of 9000 hours (approximately 1 year), after which the lamp naturally degrades and the radiation level it produces cannot be guaranteed.
To safeguard the electrical components of the lamp from direct contact with water, the UV lamp is housed within a quartz thimble. We specifically use quartz (fused silica) for this purpose due to its strength, thermal resistance, and excellent UV transmission properties.
However, over time, metal ions embedded within the quartz thimble's silica structure can interfere with the UV-C radiation, reducing the UV transparency of the glass and making it more fragile. This phenomenon is known as solarization.
Additionally, the exterior of the quartz thimble can accumulate tannin, bio-film, algae, and scale, hindering the penetration of the lamp's ultraviolet light and impairing the system's ability to effectively sanitise the water passing through.
Considering these factors, we recommend replacing the lamp every 12 months and the thimble every 1-2 years to ensure optimal performance and maintain the system's effectiveness in water sanitization.
By following these maintenance guidelines, you can ensure the longevity and reliability of your UV system, allowing it to consistently deliver the highest level of water safety and sanitation.
If you have any further questions or require assistance with UV system maintenance or replacement, please don't hesitate to reach out to our knowledgeable team. We are here to provide you with the support and expertise you need.
